Medeco retrofit solutions for SARGENT 10X

This Technical Bulletin contains Medeco product recommendations for those who have SARGENT 10X, SARGENT 30-10X (30 prefix), SARGENT 10X ECOFLEX, and/or Corbin Russwin CLX3300 handle sets and are in need of a locking cylinder. All Medeco recommendations are ‘plug-and-play’ products ensuring proper fit and function within the handle set.

Medeco cylinder recommendations (see graphics below for additional details):

• For SARGENT 10X: Medeco 2080161 (CT-V61 tailpiece included)
• For SARGENT 30-10X: Medeco 2020064 (CT-V64 tailpiece included)
• For SARGENT 10X ECOFLEX: Medeco 2080162 (CT-V62 tailpiece included)
• For Corbin Russwin CLX3300: Medeco 2020073 (CT-Y73 tailpiece included)

SARGENT 10X

Medeco recommends:

Cylinder: 2080161

Tailpiece: CT-V61 (included)

Spacer: Must use light blue spacer included with SARGENT 10X.

Technology: All (not available in Original, eCLIQ, M3 Original)

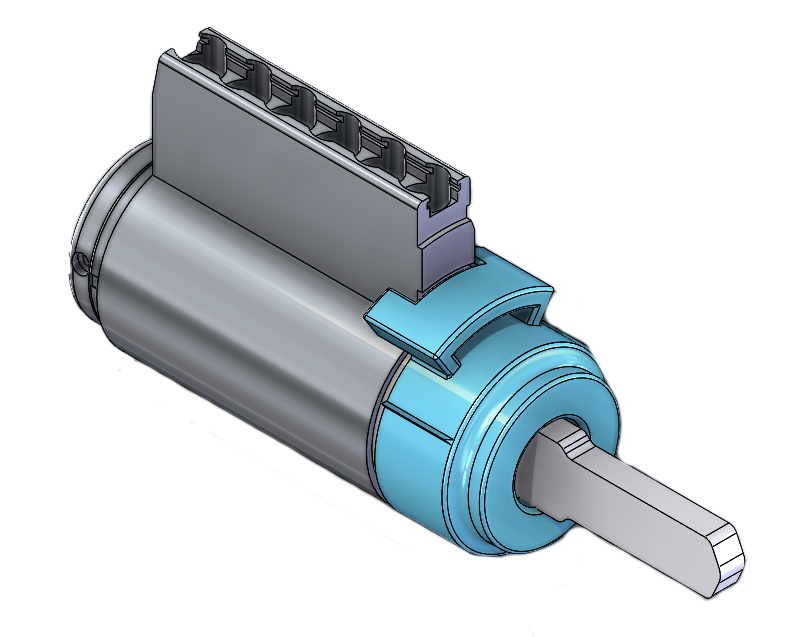

SARGENT 10X ECOFLEX

Medeco recommends

Cylinder: 2080162

Tailpiece: CT-V62 (included)

Spacer: Must use light blue spacer included with SARGENT 10X ECOFLEX

Technology: All (not available in Original, eCLIQ, M3 Original)

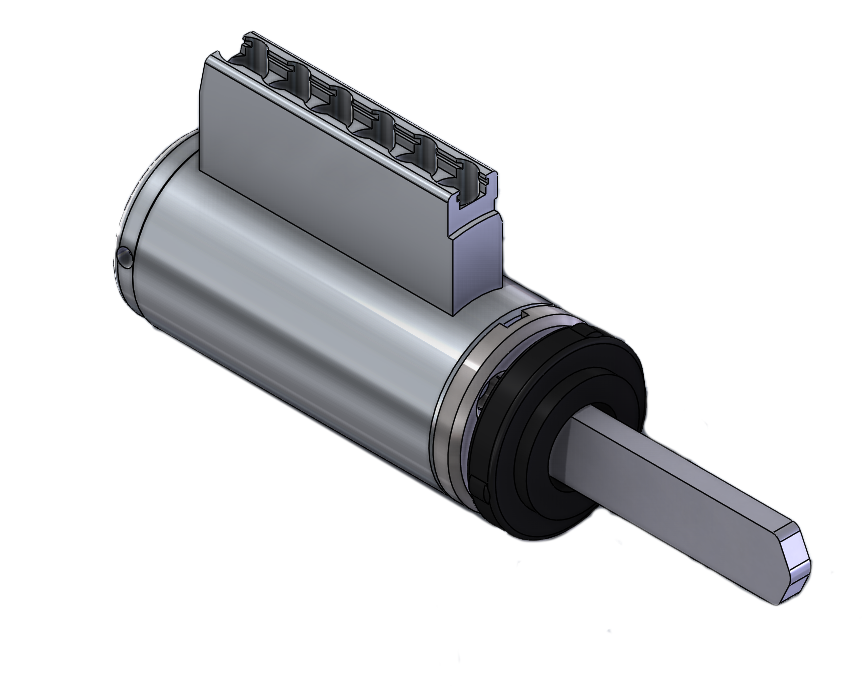

SARGENT 30-10X

Medeco recommends:

Cylinder: 2020064

Tailpiece: CT-V64 (included)

Spacer: Must use black spacer included with SARGENT 30-10X

Technology: All

Corbin Russwin CLX3300

Medeco recommends:

Cylinder: 2020073

Tailpiece: CT-Y73 (included)

Spacer: Must use black spacer included with CLX3300

Technology: All
