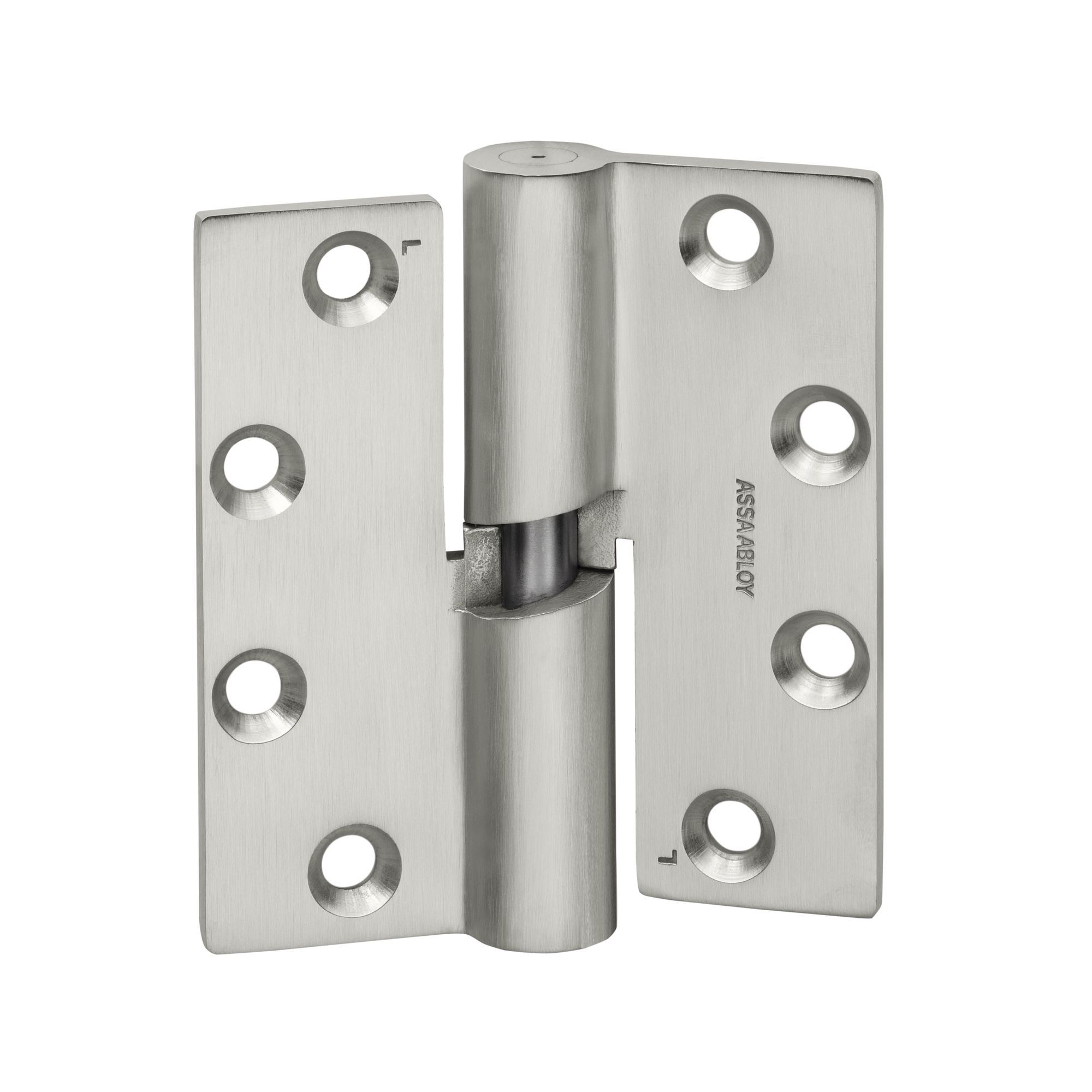

McKinney Cam Lift Hinges
19 Oct 2018
McKinney Cam Lift Hinges are recommended for acoustic door assemblies or other applications which benefit from an exceptionally tight seal, for example, for energy savings. The hinges lift the door up and then lower it to create a tight seal when the door is closed.
- 4 models, standard and heavy-weight
- Handed
- For wood or metal doors
- 304 Stainless Steel Material, 32D Finish
- Mortise-style
McKinney Cam Lift Hinges are made of 304 Stainless Steel with a Satin Stainless Steel (32D) finish.
| Part Number | Model Number | Size | Fasteners | Holes | Handing | Lift (180 Degree Opening) | Door Rating (1 1/2 Pairs) |
| 66000 | MKCL134LH | 4 1/2" x 4 1/2" | 12-24 x 3/4" | 8 | LH | 3/16" | up to 200 lbs |
| 66001 | MKCL134RH | 4 1/2" x 4 1/2" | 12-24 x 3/4" | 8 | RH | 3/16" | up to 200 lbs |
| 66002 | MKCL180LH | 5" x 4 1/2" | 12-24 x 3/4" | 8 | LH | 1/4" | up to 300 lbs |
| 66003 | MKCL180RH | 5" x 4 1/2" | 12-24 x 3/4" | 8 | RH | 1/4" | up to 300 lbs |
| 66004 | MKCL250LH | 5" x 4 1/2" | 12-24 x 3/4" | 8 | LH | 5/16" | up to 500 lbs |
| 66005 | MKCL250RH | 5" x 4 1/2" | 12-24 x 3/4" | 8 | RH | 5/16" | up to 500lbs |
| 66006 | MKCL2500LH | 5" x 4 1/2" | 5/16-18 x 3/4" | 8 | LH | 5/16" | up to 900 lbs |
| 66007 | MKCL2500RH | 5" x 4 1/2" | 5/16-18 x 3/4" | 8 | RH | 5/16" | up to 900 lbs |
For additional information contact your local sales representative, ASSA ABLOY Door Security Solutions Representative, or call 800-346-7707.
