DC5200 Cam Action Door Closer from Corbin Russwin
What are benefits of the cam action door closer and how are they designed to overcome challenging applications?
What is a cam action door closer?
A cam action door closer features a mechanical profile engineered to modify the force applied during opening and closing through the use of a heart-shaped cam and spring mechanism. The spring compresses, revolving around the cam to achieve the desired force profile, offering greater flexibility in design.
What are some advantages of the cam action door closer?
The cam action door closer is crafted to facilitate easy door opening while ensuring sufficient force for secure door closure, making it an ideal choice for situations where both security and accessibility are crucial. The single closer and track assembly can accommodate up to four installation positions and come with a unique arm for simplified installation.

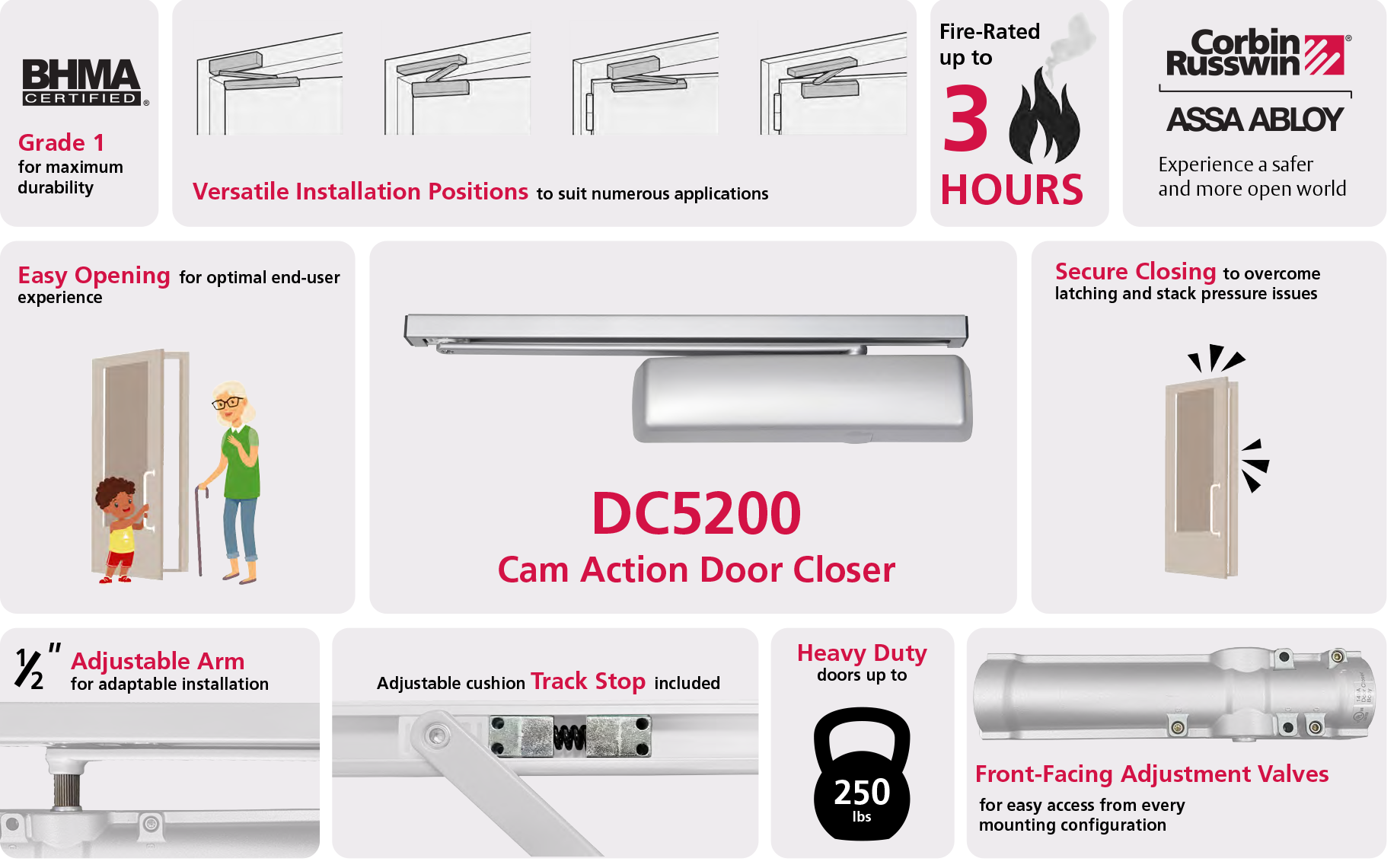

Explore further benefits of the DC5200 cam action door closer, available with Corbin Russwin, below.
If you’re having trouble viewing the infographic, click here to view in a new tab.
Features of the DC5200 cam action door closer
- Cast aluminum body
- Adjustable spring size 1 through 6
- Door weight: 250 lbs.
- Non-handed
- Unique spline arm
- Push and pull side installation, door or frame mounted
- Adjustable closing force
- Adjustable closing and latching speed
- Backcheck standard
- Suitable for exterior and interior doors
- Recommended maximum interior door width 54" (137)
- Standard opening range: pull side = 140°, push side = 110°
- 30-year limited warranty
