422 Cam Action Door Closer from SARGENT Manufacturing
What are benefits of the cam action door closer and how are they designed to overcome challenging applications?
What is a cam action door closer?
A cam action door closer employs a mechanical profile designed to minimize the force applied during door opening and closing using a heart-shaped cam and spring mechanism. As the spring compresses, it rotates around the cam, achieving the desired force profile and providing enhanced flexibility in design.
What are some advantages of the cam action door closer?
The cam action door closer is specifically crafted to make doors easily accessible while maintaining sufficient force for secure closure. This makes it an optimal choice for scenarios where both security and accessibility are top priorities. The single closer and track assembly support up to four installation positions and feature a unique arm for simplified installation.

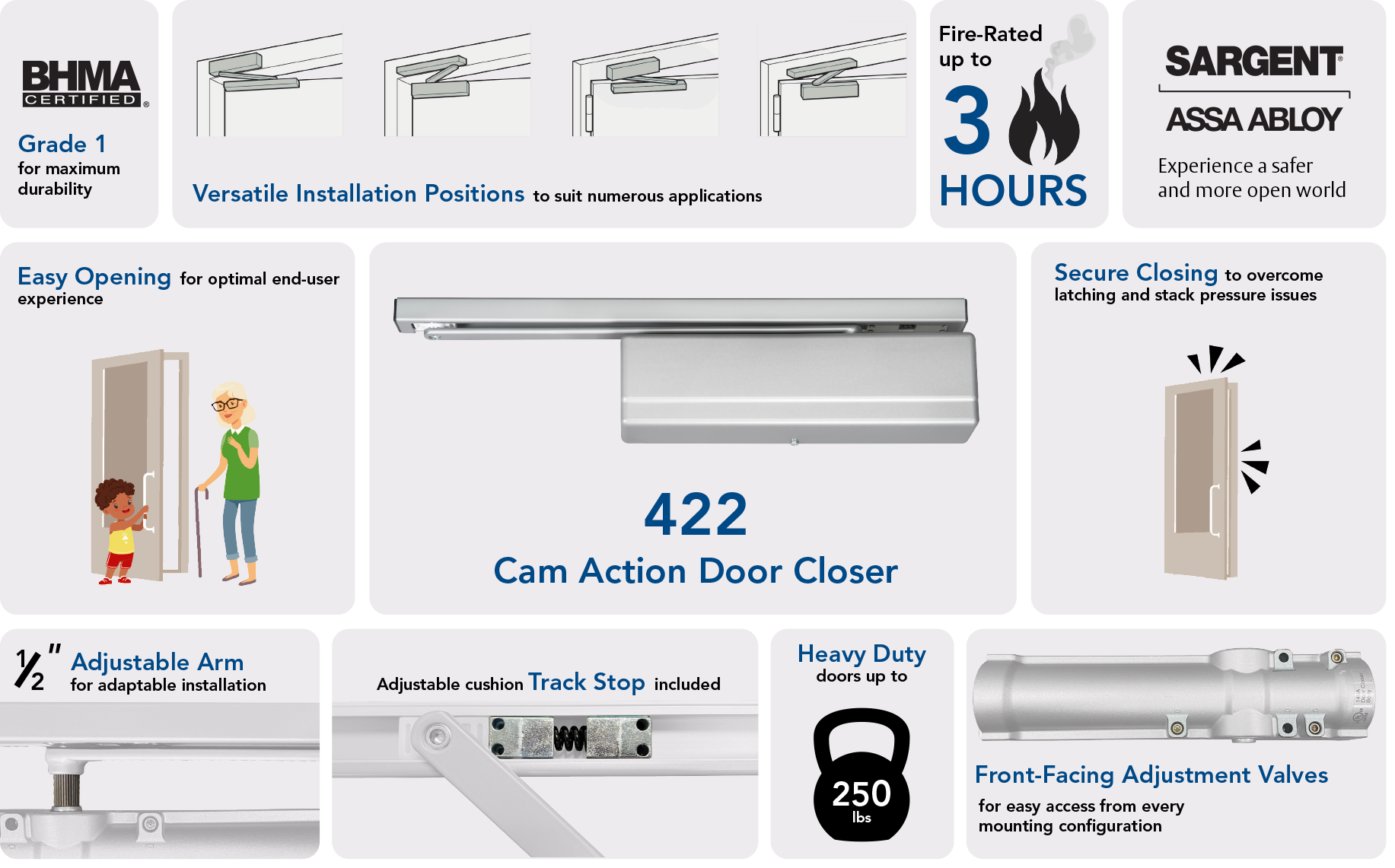

Discover additional benefits of the 422 cam action door closer, available with SARGENT Manufacturing, below.
If you’re having trouble viewing the infographic, click here to view in a new tab.
Features of the 422 cam action door closer
- Cast aluminum body
- Adjustable spring size 1 through 6
- Door weight: 250 lbs.
- Non-handed
- Unique spline arm
- Push and pull side installation, door or frame mounted
- Adjustable closing force
- Adjustable closing and latching speed
- Backcheck standard
- Suitable for exterior and interior doors
- Recommended maximum interior door width 54" (137)
- Standard opening range: pull side = 140°, push side = 110°
- 30-year limited warranty
